Zebra SP7201: Single Plane
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Ask an expert!

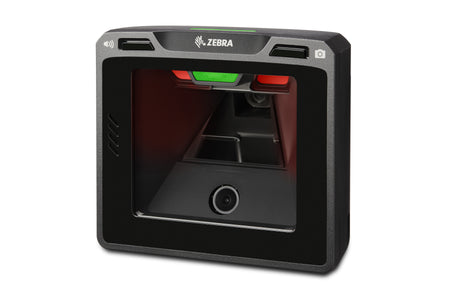

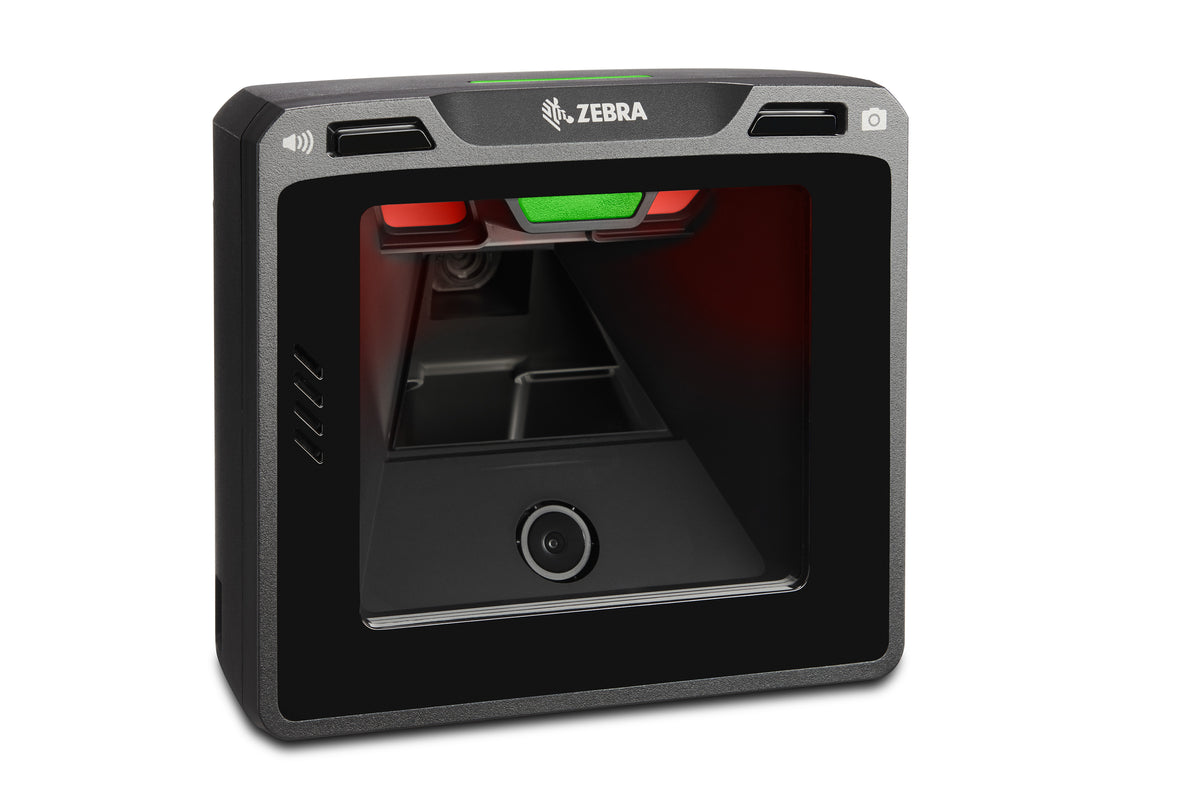

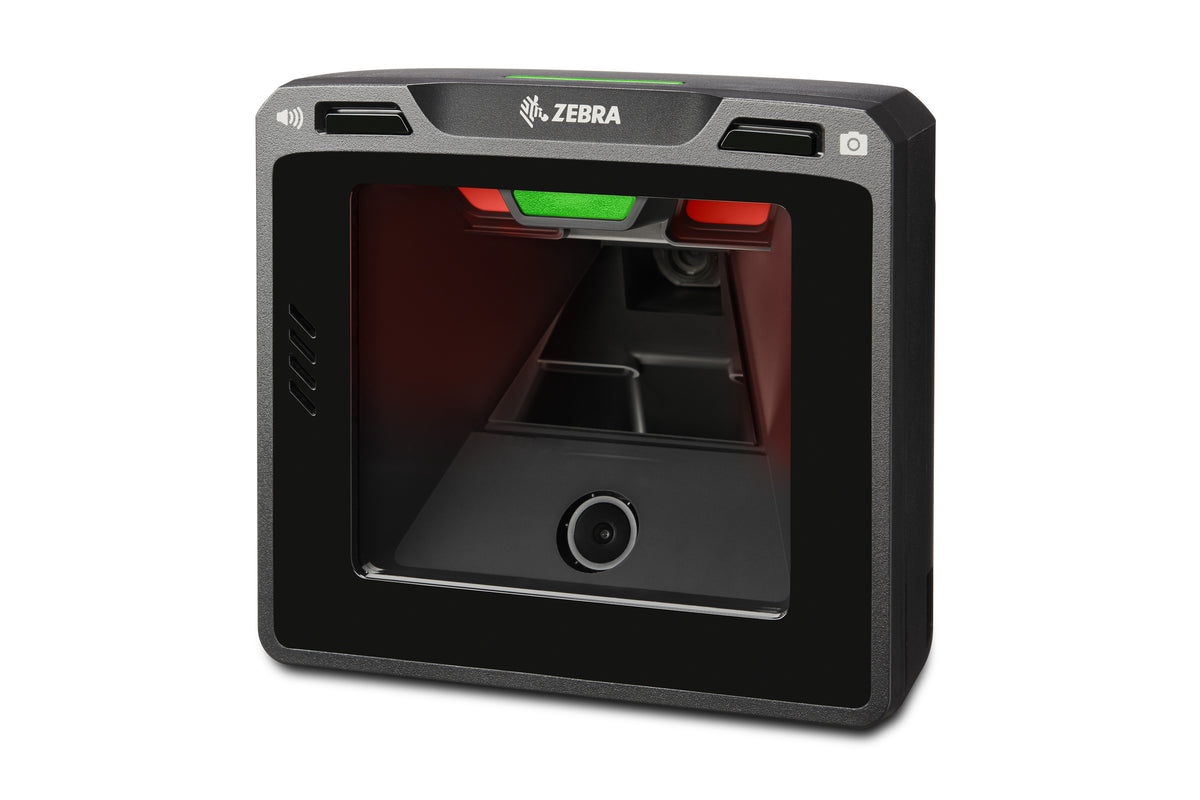

The Zebra SP7201 is a high-performance single-plane barcode scanner designed for fast, reliable hands-free scanning in retail and point-of-sale environments. This vertical USB-only configuration combines Zebra’s 2.3 MP imaging technology with PRZM Intelligent Imaging to quickly capture 1D, 2D and Digimarc barcodes, including challenging or damaged codes. The compact SP72-V design is ideal for on-counter and self-checkout installations.
Key Features
-
Single-plane vertical design for convenient on-counter and self-checkout installations.
-
2.3 MP high-resolution imager with Zebra PRZM Intelligent Imaging technology.
-
Supports 1D, 2D and Digimarc barcodes, including QR Code, DataMatrix, PDF417 and more.
-
Fast hands-free scanning at speeds of up to 120 in./305 cm per second in optimized conditions.
-
Large scan area helps users position products naturally for quick, intuitive scanning.
-
USB-only connectivity with 5VDC host-powered operation.
-
Supports USB HID keyboard interface and over 90 international keyboards.
-
IP52 sealing and durable construction for demanding retail environments.
-
Upward-facing good-decode indicators and adjustable speaker volume provide clear scan confirmation.
-
Compatible with Checkpoint and Sensormatic EAS systems on supported configurations.
Specifications
| Specification | Details |
|---|---|
| Brand | Zebra |
| Model | SP7201 |
| SKU | SP7201-SV00004ZZWW-UP |
| Product Type | Single-Plane Barcode Scanner |
| Form Factor | SP72-V Vertical |
| Configuration | Single Plane, USB Only, Standard Range |
| Scanning Technology | 2D Imager |
| Imager Resolution | 2.3 MP (1920 × 1200 pixels) |
| Supported Barcodes | 1D, 2D and Digimarc |
| Minimum Resolution | 3 mil Code 39 / Code 128; 5 mil Data Matrix / QR Code |
| Scan Speed | Up to 120 in./305 cm per second |
| Field of View | 54° H × 35.5° V |
| Host Interface | USB |
| Power | 5VDC USB host-powered |
| Operating Current | 480 mA average |
| Dimensions | 5.4" H × 6.0" W × 3.3" D (13.7 × 15.2 × 8.4 cm) |
| Weight | 20.3 oz (577 g) |
| Colour | Midnight Black |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 20%–95% RH, non-condensing |
| Environmental Sealing | IP52 |
| ESD Protection | ±15 kV Air, ±25 kV Direct, ±8 kV Indirect |
| Applications | Retail POS, self-checkout, grocery, pharmacy and convenience stores |
