Vantec UGT-PC130GNA 4-Port PCIe Gigabit Ethernet Network Adapter Card

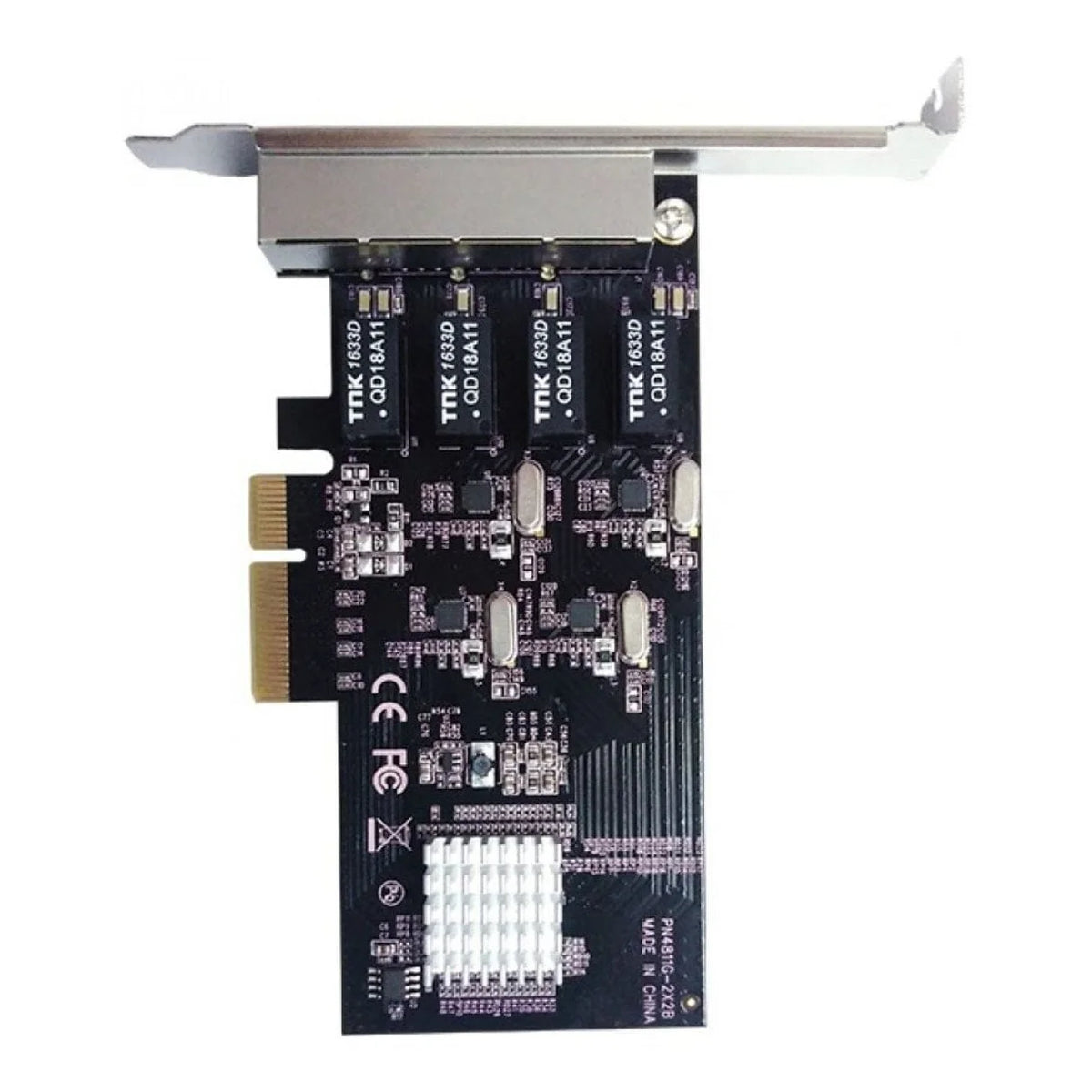

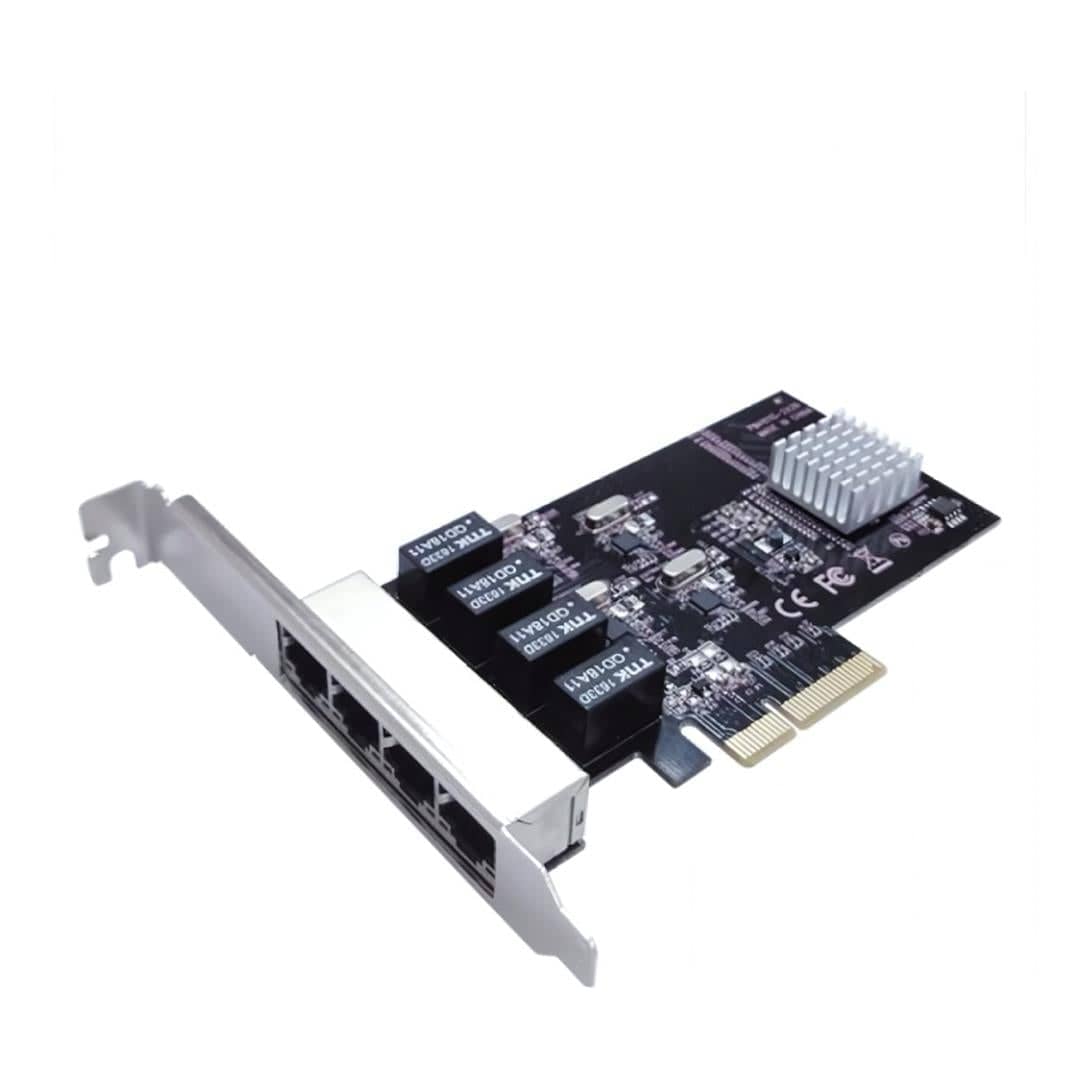

The Vantec UGT-PC130GNA is a four-port PCIe Gigabit Ethernet adapter designed for desktops, workstations and server environments that require multiple independent wired network connections. It adds four RJ-45 Ethernet ports through a PCI Express interface, supporting 10/100/1000Mbps connectivity, jumbo frames up to 9K and Wake-on-LAN for flexible network expansion and management.
Key Features
- 4-port PCIe Gigabit Ethernet network adapter
- Four independent RJ-45 Ethernet ports
- Supports 10Mbps, 100Mbps and 1000Mbps network speeds
- PCI Express x4 interface
- Compatible with PCIe x4, x8 and x16 slots
- IEEE 802.3, 802.3u and 802.3ab compliant
- 10/100/1000Mbps auto-negotiation
- Automatic MDI/MDIX crossover
- Up to 9K jumbo frame support
- Wake-on-LAN support
- Full-duplex operation
- Four independent network ports with individual MAC addresses
- Suitable for desktops, workstations, servers and multi-network environments
- Includes low-profile bracket for compatible compact systems
Specifications
| Product | Vantec UGT-PC130GNA 4-Port PCIe Gigabit Ethernet Network Adapter Card |
| SKU | VANTEC UGT-PC130GNA |
| Product Type | PCIe Gigabit Ethernet Network Adapter Card |
| Ethernet Ports | 4 x RJ-45 |
| Network Speed | 10/100/1000Mbps |
| Bus Interface | PCI Express x4 |
| PCIe Slot Compatibility | x4, x8 and x16 PCI Express slots |
| Standards | IEEE 802.3, 802.3u, 802.3ab |
| Auto-Negotiation | 10/100/1000Mbps |
| MDI/MDIX | Automatic |
| Jumbo Frames | Up to 9K |
| Wake-on-LAN | Supported |
| Duplex | Full Duplex |
| MAC Addresses | Independent MAC address per port |
| Bracket | Low-profile bracket included |
