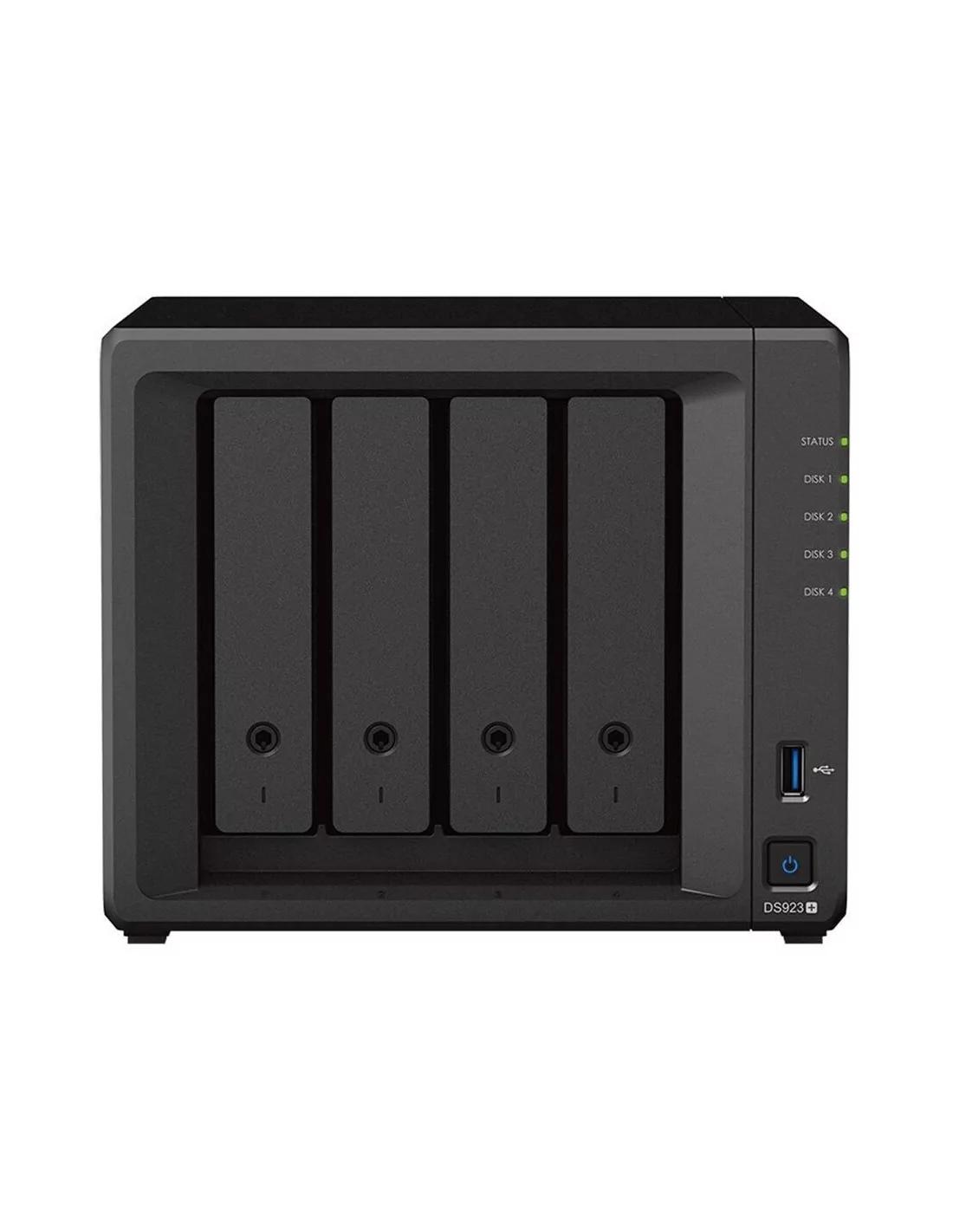

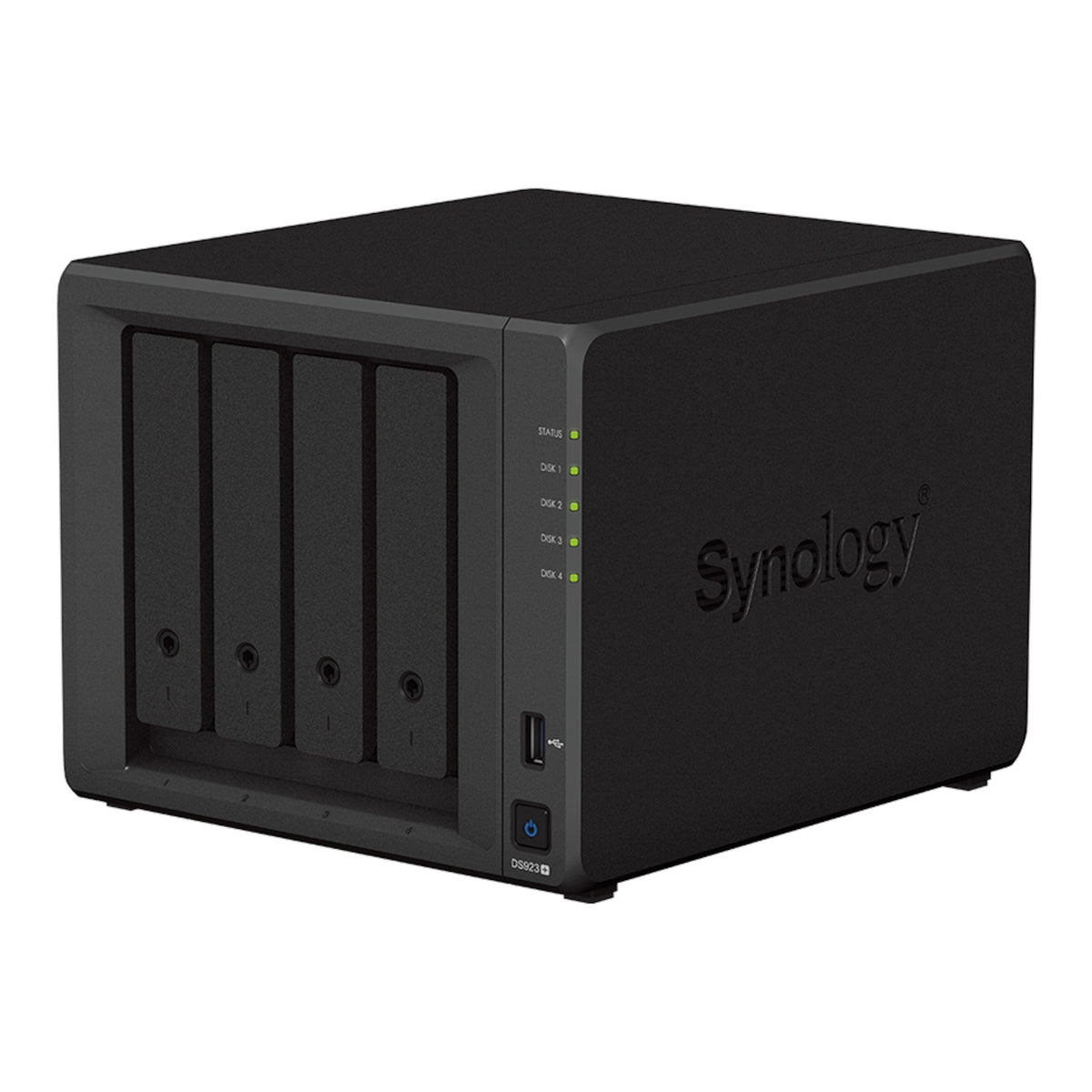

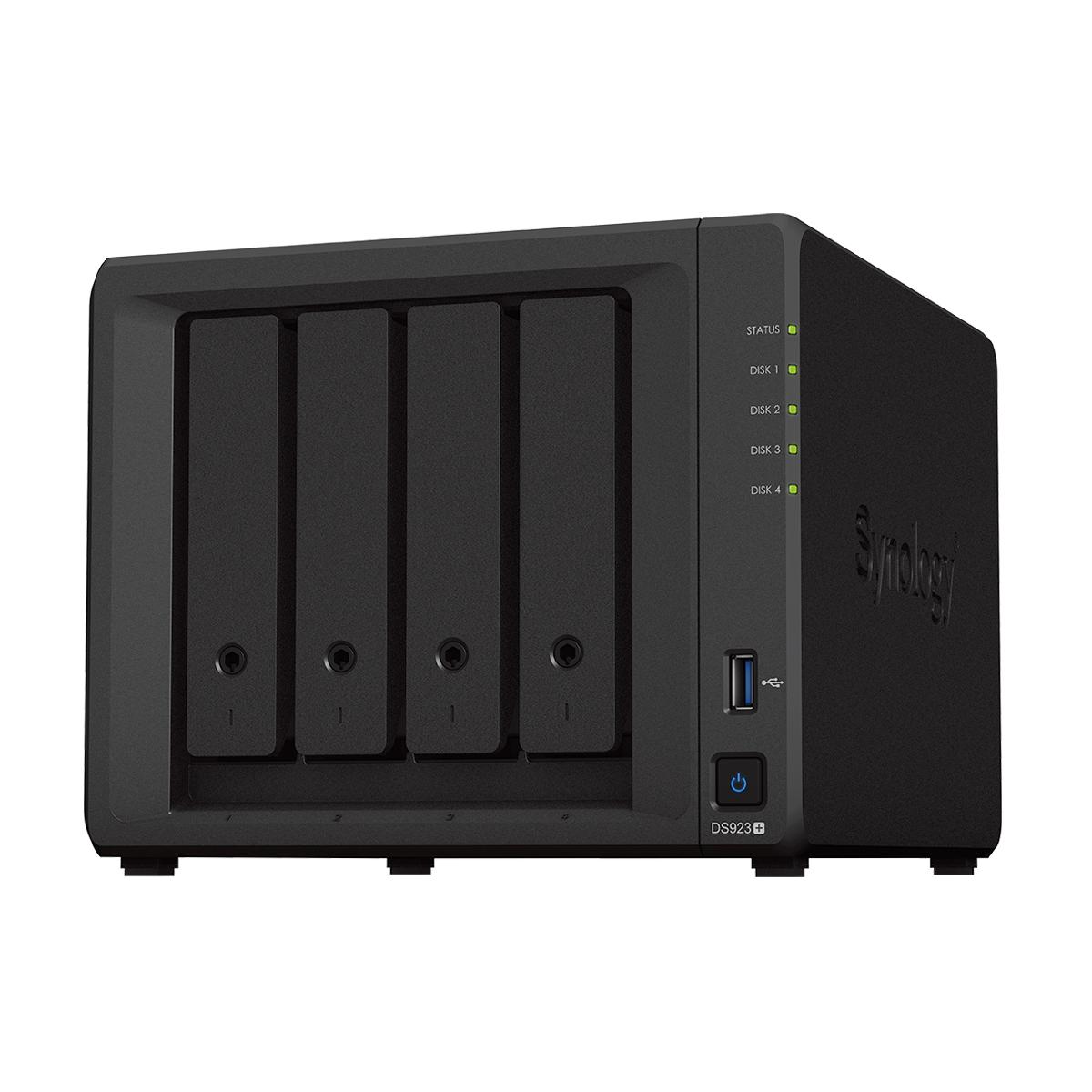

Synology DiskStation DS923+ 4-Bay NAS Enclosure
The Synology DiskStation DS923+ is a versatile 4-bay NAS enclosure designed for home offices, small businesses and professional storage environments. Powered by an AMD Ryzen R1600 processor and Synology DiskStation Manager (DSM), it provides centralized file storage, backup, synchronization, surveillance and data-management capabilities. The system supports four SATA drives, two M.2 NVMe SSDs and can be expanded to up to nine drives with a compatible expansion unit.
Key Features
- 4-bay NAS enclosure for flexible storage configurations
- AMD Ryzen R1600 dual-core processor, up to 3.1GHz
- 4GB DDR4 ECC SODIMM pre-installed
- Memory expandable up to 32GB
- Supports 3.5-inch SATA HDDs and 2.5-inch SATA SSDs
- 2 × M.2 2280 NVMe slots for SSD storage or caching
- 2 × 1GbE RJ-45 network ports
- 2 × USB 3.2 Gen 1 ports
- PCIe Gen3 x2 expansion slot for optional network upgrades
- Supports optional 10GbE networking
- Expandable to 9 drives with a compatible expansion unit
- Supports SHR, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10
- Btrfs and ext4 file-system support
- Powered by Synology DiskStation Manager (DSM)
- Suitable for file sharing, backup, synchronization and surveillance applications
- Drives not included
Specifications
| Brand | Synology |
|---|---|
| Product Type | NAS Enclosure |
| Product Family | DiskStation |
| SKU | Synology DS923+ |
| Drive Bays | 4 |
| Maximum Drive Bays | 9 with compatible expansion unit |
| Compatible HDD | 3.5-inch SATA HDD |
| Compatible SSD | 2.5-inch SATA SSD |
| M.2 Slots | 2 × M.2 2280 NVMe |
| Processor | AMD Ryzen R1600 |
| CPU Cores | 2 |
| CPU Frequency | 2.6GHz Base / 3.1GHz Turbo |
| Installed Memory | 4GB DDR4 ECC SODIMM |
| Maximum Memory | 32GB |
| Network | 2 × 1GbE RJ-45 |
| USB | 2 × USB 3.2 Gen 1 |
| Expansion Port | 1 × eSATA |
| PCIe | 1 × Gen3 x2 network upgrade slot |
| RAID | SHR, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| File Systems | Btrfs, ext4 |
| Dimensions | 166 × 199 × 223mm |
| Weight | 2.24kg |
| System Fans | 2 × 92mm |
| Noise Level | 22.9 dB(A) |
| Power Supply | 100W / 120W |
| Input Voltage | 100–240V AC |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Warranty | 3-year hardware warranty |
Disclaimer: Descriptions may be generated and may not reflect the actual product. Please check the manufacturer's website using the product code (SKU) for the full specifications and the most up-to-date product information.
