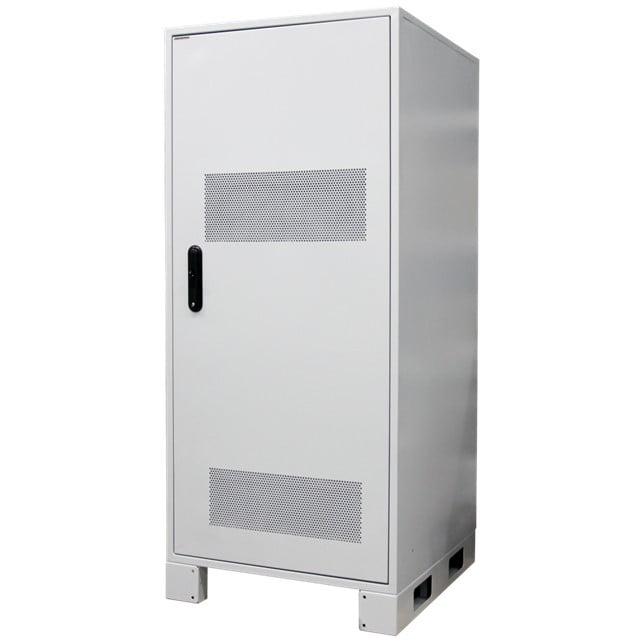

ICC200-N6-H1 Three-Phase Top Output Server Cabinet 600x600x2000mm
Description
The ICC200-N6-H1 is a three-phase top-output power cabinet designed for structured power and equipment installations. With a compact 600mm x 600mm footprint and a 2000mm vertical profile, the cabinet provides a dedicated enclosure for power-system components and associated equipment, with cabling routed from the top for organised installation.
Key Features
- ICC200-N6-H1 model
- Three-phase power configuration
- Top-output cable routing design
- 600mm x 600mm footprint
- 2000mm overall height
- 42U total cabinet space
- 19-inch equipment configuration
- 24U space for up to four PVDU units
- Front and rear maintenance access
- Natural heat dissipation
- Steel housing, internal support and base
- IP20 protection rating
- Designed for indoor floor or ESD-floor installation
Specifications
| Brand | Huawei Power |
|---|---|
| Product | ICC200 Three-Phase Top Output Server Cabinet |
| SKU / Model | ICC200-N6-H1 |
| Product Type | Three-Phase Power Cabinet |
| Phase Configuration | Three-Phase |
| Output Configuration | Top Output |
| Dimensions (W x D x H) | 600mm x 600mm x 2000mm |
| Cabinet Space | 42U Total |
| Equipment Space | 24U for 4 x PVDU |
| Cabling | Cables Routed from the Top |
| Cooling | Natural Heat Dissipation |
| Protection Rating | IP20 |
| Cabinet Material | Steel |
| Installation | Indoor, Concrete Floor or ESD Floor |
| Maintenance | Front and Rear |
