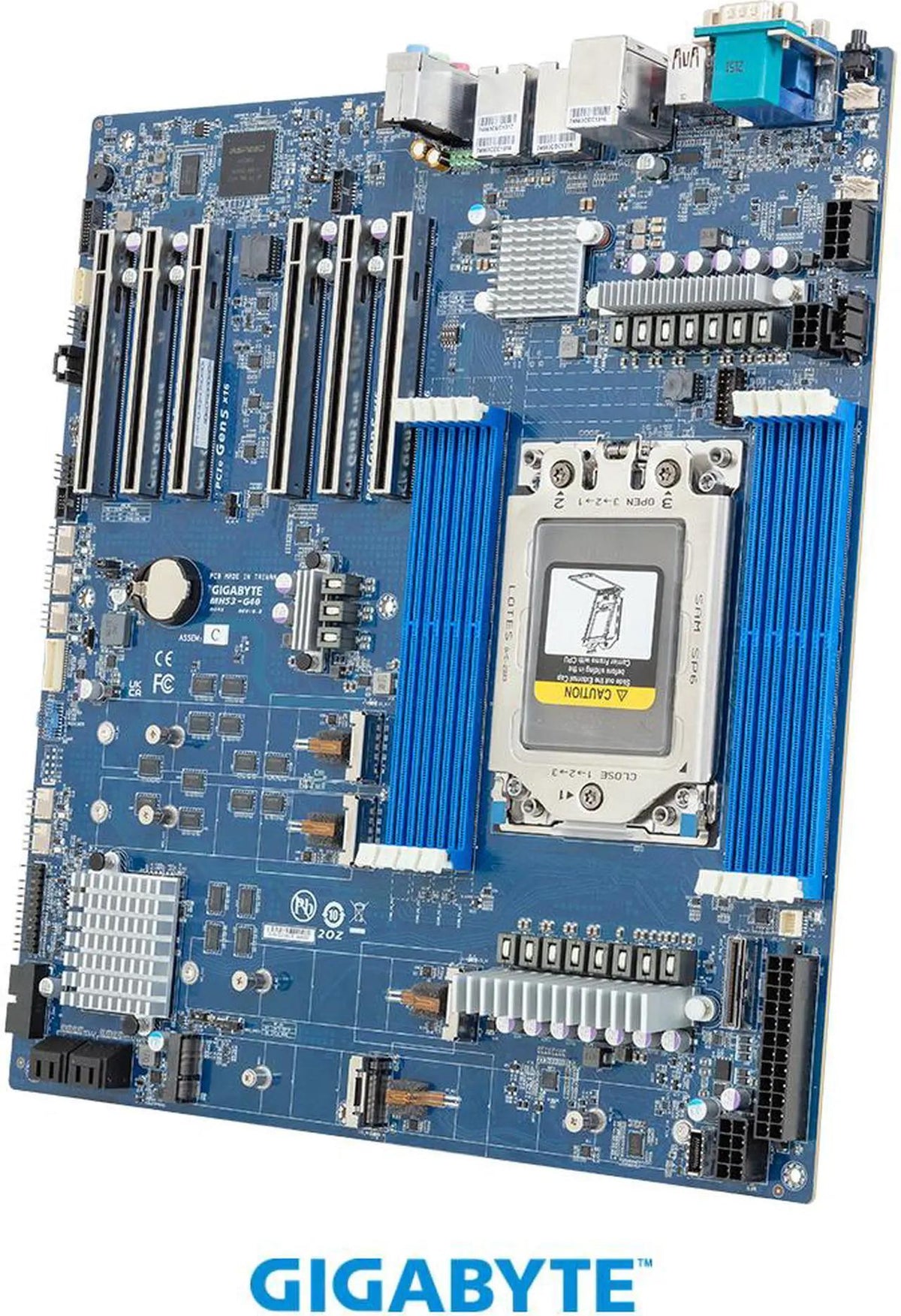

GIGABYTE MH53-G40 WRX90 E-ATX Motherboard for AMD Threadripper PRO
The GIGABYTE MH53-G40 is a professional E-ATX workstation motherboard designed for AMD Ryzen Threadripper PRO processors. Built around the AMD WRX90 chipset and sTR5 socket, it provides extensive PCIe Gen5 expansion, eight-channel DDR5 ECC Registered memory support, high-speed dual 10GbE networking and multiple high-performance storage interfaces for demanding workstation and professional computing environments.
Key Features
- AMD Threadripper PRO Platform: Supports AMD Ryzen Threadripper PRO 9000 and 7000 WX-Series processors with a single sTR5 CPU socket.
- AMD WRX90 Chipset: Professional workstation platform designed for high-core-count processors and extensive expansion.
- Eight-Channel DDR5: Eight DIMM slots supporting DDR5 RDIMM and 3DS RDIMM memory, with speeds up to 5200 MT/s for Threadripper PRO 7000 WX processors.
- Six PCIe Gen5 x16 Slots: Provides substantial expansion capacity for graphics cards, accelerators and other high-bandwidth PCIe devices.
- High-Speed Storage: Four M.2 PCIe Gen5 x4 slots support 2280/22110 drives, plus an MCIO 8i connector and four SATA 6Gb/s ports.
- Dual 10GbE Networking: Broadcom BCM57416 provides two 10Gb/s LAN ports for high-speed professional networking.
- Dedicated Management LAN: Includes a 10/100/1000 Mbps management LAN connection.
- Remote Management: ASPEED AST2600 management controller with GIGABYTE Management Console support.
- Integrated Graphics: ASPEED AST2600 provides 2D graphics with VGA output up to 1920 × 1200 at 60Hz.
- Professional Audio: Realtek ALC897 HD audio with support for up to 7.1-channel configurations.
- E-ATX Form Factor: Designed for large professional workstation and server-class chassis.
Specifications
| Brand | GIGABYTE |
| Model | MH53-G40 |
| Product Type | Workstation Motherboard |
| Form Factor | E-ATX |
| Dimensions | 304.8 × 330.2 mm |
| CPU Support | AMD Ryzen Threadripper PRO 9000 WX-Series / 7000 WX-Series |
| CPU Socket | sTR5 |
| Chipset | AMD WRX90 |
| Memory Type | DDR5 RDIMM / 3DS RDIMM |
| Memory Slots | 8 × DIMM |
| Memory Architecture | 8-channel |
| Memory Speed | Up to 5200 MT/s with Threadripper PRO 7000 WX |
| PCIe Expansion | 6 × PCIe Gen5 x16 |
| M.2 Storage | 4 × M.2 PCIe Gen5 x4, supporting 2280/22110 |
| MCIO | 1 × MCIO 8i, Gen5 x8 or SATA |
| SATA | 4 × SATA 6Gb/s |
| LAN | 2 × 10Gb/s LAN + 1 × 1Gb/s management LAN |
| LAN Controller | Broadcom BCM57416 |
| Management Controller | ASPEED AST2600 |

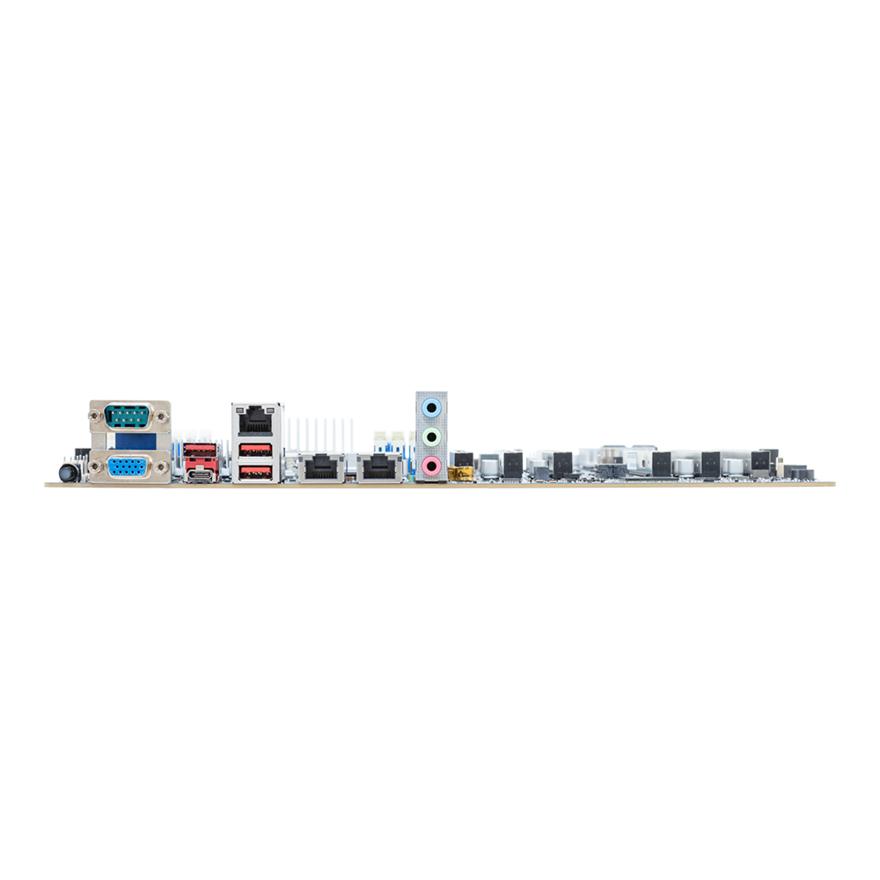

| Video Output | 1 × VGA |
| USB | 1 × USB 3.2 Gen2x2 Type-C, 3 × USB 3.2 Gen2 Type-A |
| Audio | Realtek ALC897 HD Audio, up to 7.1-channel |
| RAID | RAID 0 / 1 / 5 / 10 |
| Power Connectors | 1 × 24-pin ATX, 2 × 8-pin ATX 12V, 1 × 6-pin ATX 12V |
| Fan Headers | 1 × CPU fan + 6 × system fan |
| Operating System Support | Red Hat Enterprise Linux, Ubuntu, Windows 11 |
