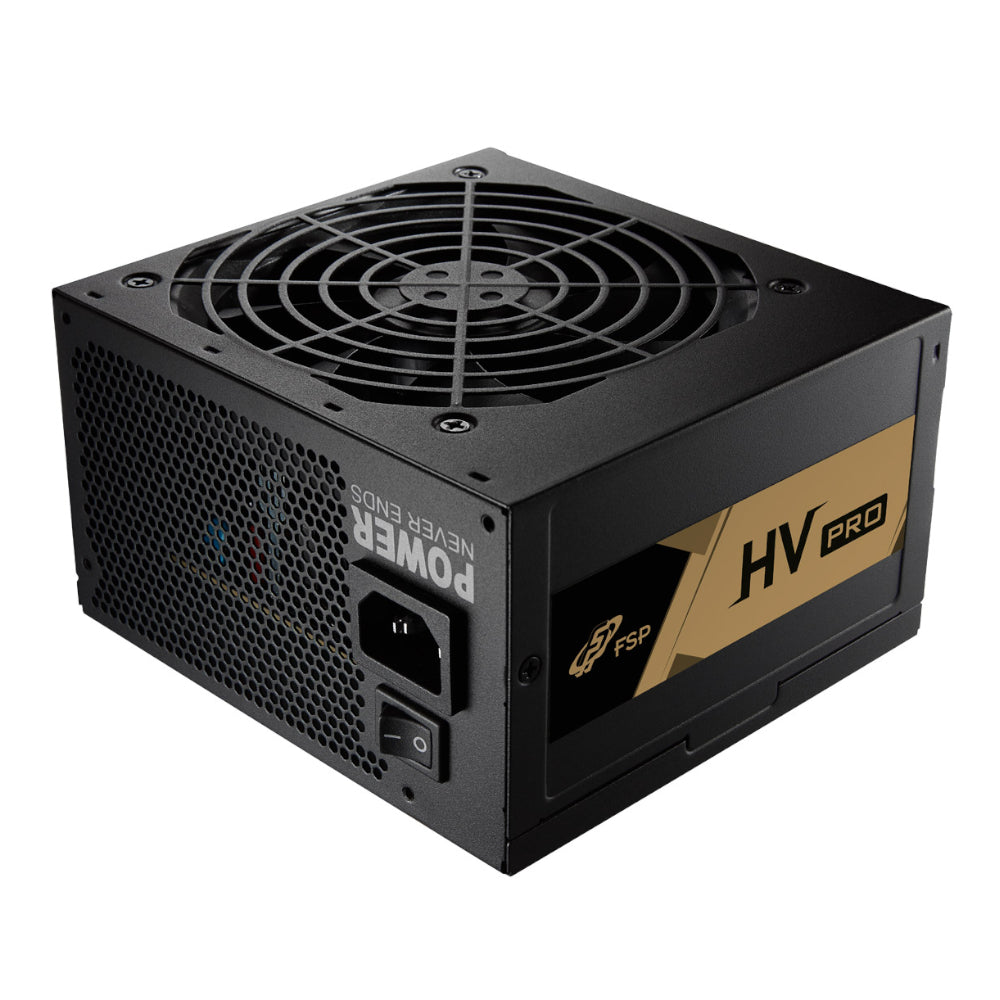

Image 1 for FSP HV Pro 650W Plus Non Modular PSU

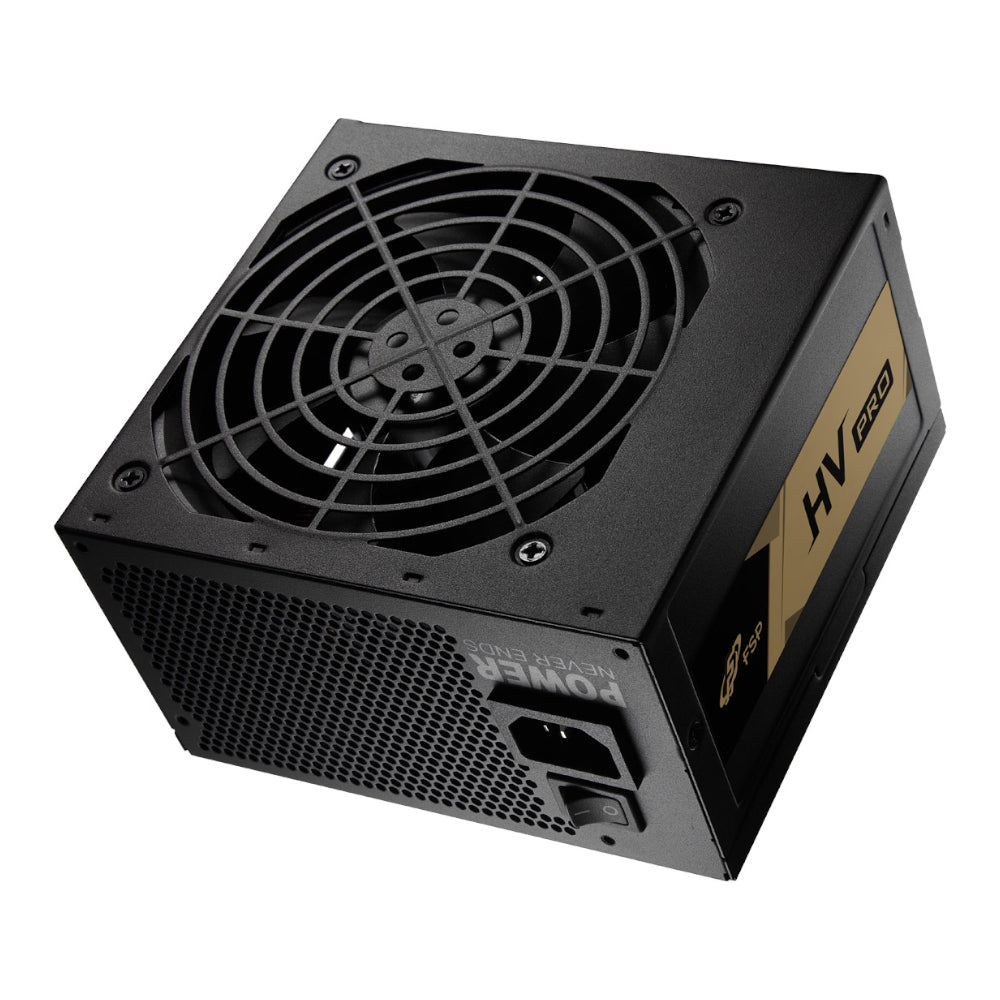

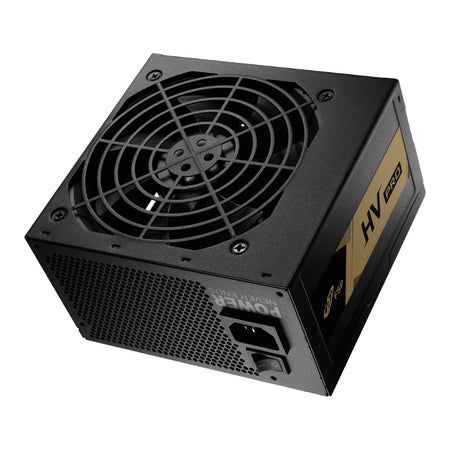

Image 2 for FSP HV Pro 650W Plus Non Modular PSU

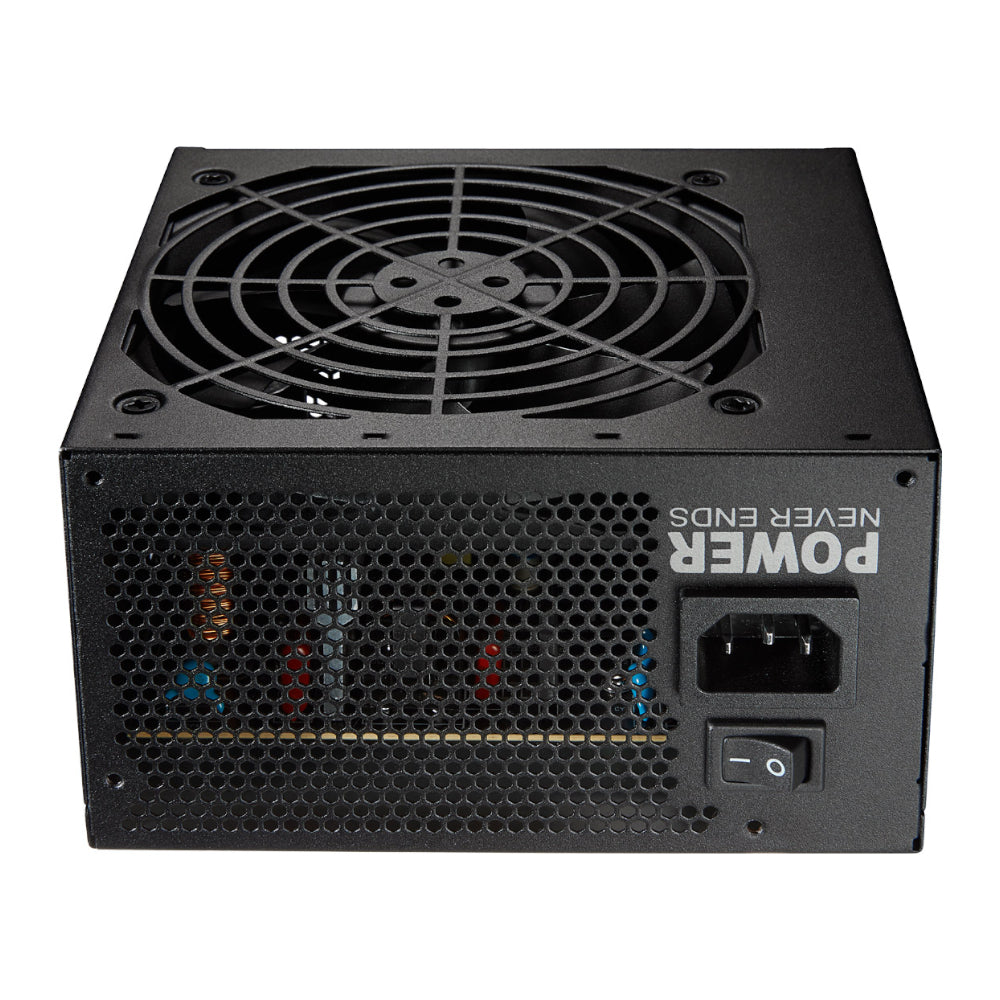

Image 3 for FSP HV Pro 650W Plus Non Modular PSU

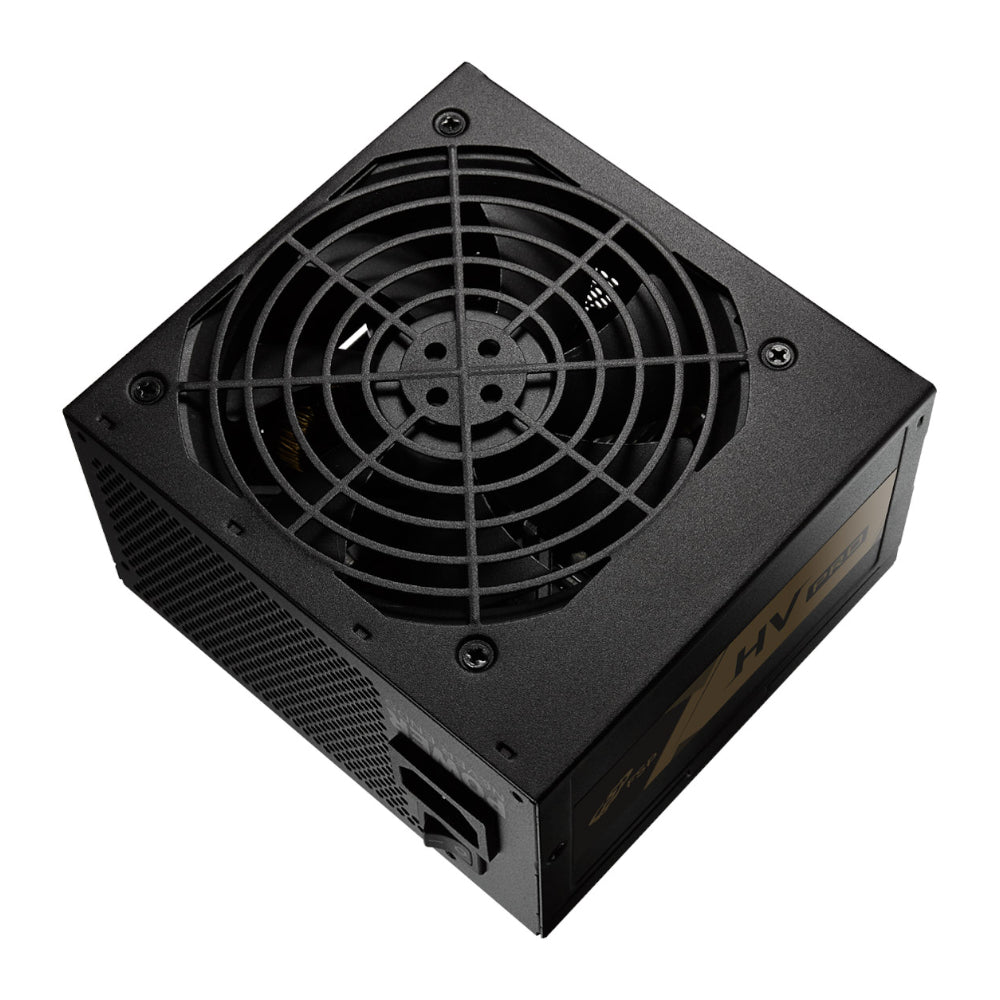

Image 4 for FSP HV Pro 650W Plus Non Modular PSU
Image 1 for FSP HV Pro 650W Plus Non Modular PSU
Image 2 for FSP HV Pro 650W Plus Non Modular PSU
Image 3 for FSP HV Pro 650W Plus Non Modular PSU
Image 4 for FSP HV Pro 650W Plus Non Modular PSU

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

FSP

FSP HV Pro 650W Plus Non Modular PSU

SKU: PPA6505406
(0)
R 978.65 inc. VAT
In stock
Usually ships within 24 hours
Title

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +27 71 231-1936

The FSP HV PRO 650W ATX Non-modular Power Supply offers reliable performance and essential features for powering modern PC builds. Designed to meet ATX12 v2.52 & EPS12 v2.92 standards, this power supply ensures stable and efficient operation, achieving 85% efficiency at typical loads under 230V EU conditions.

Equipped with Active PFC (Power Factor Correction) with a rating of ≥0.9, the HV PRO provides clean and efficient power delivery. Its +12V Single-Rail Design and DC-to-DC Module for +5V and +3.3V voltages ensure consistent and reliable performance for demanding hardware components.

The 120mm silent fan guarantees efficient cooling while maintaining low noise levels, making it ideal for quiet builds. Complete with OCP (Overcurrent), OVP (Overvoltage), OPP (Overpower), and SCP (Short Circuit) protections, the HV PRO ensures the safety of your system during operation.

FEATURES:

  • Complies with ATX12 v2.52 & EPS12 v2.92
  • Efficiency 85% at typical Load
  • Active PFC ≧ 0.9
  • Hold up time > 17ms at 80% Load
  • +12V Single-Rail Design
  • +5V &3.3V DC to DC Module Design
  • 120mm Silent & long life Fan
  • Complete Protections: OCP/OVP/OPP/SCP

SPECIFICATIONS:

  • Rated Output Power: 650W
  • Form Factor: ATX
  • 80 PLUS Certification: 230V EU Standard
  • Input Voltage: 200-240V
  • Input Current: 5A
  • Input Frequency: 50-60Hz
  • PFC: Active PFC
  • Efficiency: ≥85% at typical load
  • Fan Type: Sleeve Fan, 120mm
  • Protection: OCP, OVP, OPP, SCP
  • Product Dimensions: 15 x 14 x 8.6 cm
  • DC Output/Max Output Current/Max Combined Power:
  • +3.3V/20A/100W
  • +5V/20A/100W
  • +12V/54.1A/649.2W
  • -12V/0.3A/3.6W
  • +5Vsb/2.5A/12.5W
  • Connectors:
  • MB 20+4 x1
  • 4+4 PIN x2
  • PCI-E 6+2 x2
  • SATA x4
  • Molex (PERIPHERAL) x2
  • Floppy x1

WHAT'S IN THE BOX:

  • FSP HV PRO 650W ATX Non-modular Power Supply - Black x1
