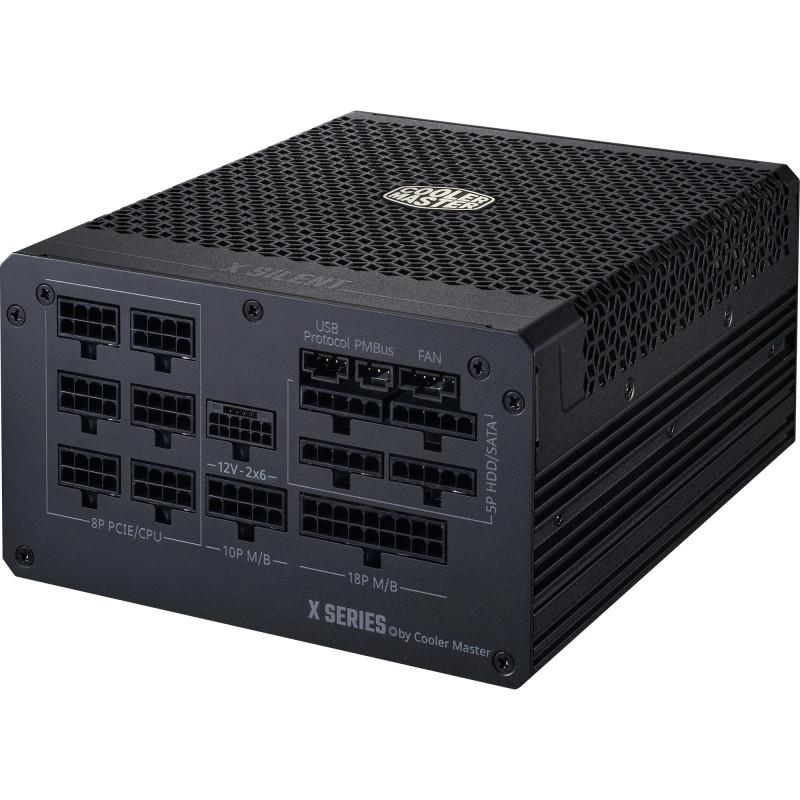

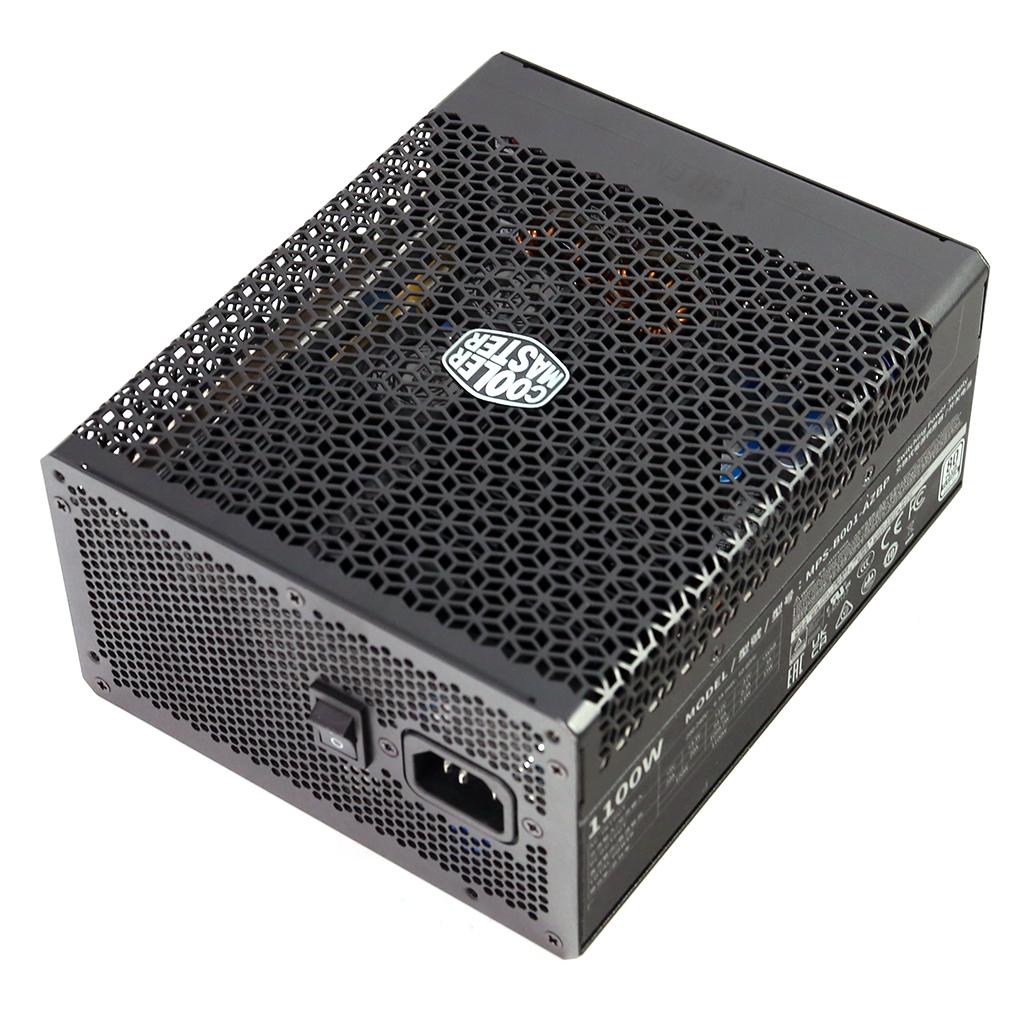

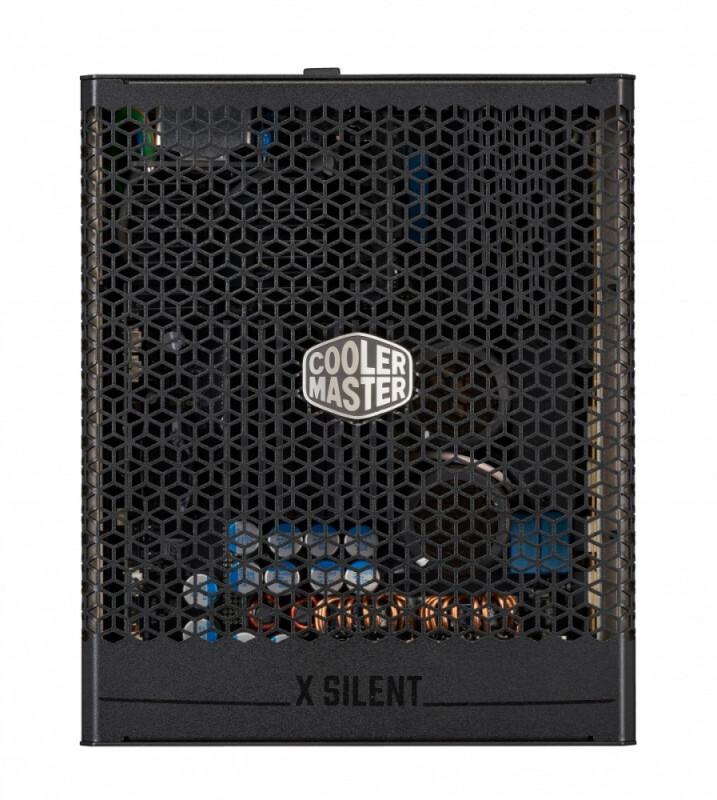

Cooler Master X Silent Edge Platinum 1100W 80 PLUS Platinum Fully Modular Fanless Power Supply – 230V A/EU (MPS-B001-AZBP-NBEU)
The Cooler Master X Silent Edge Platinum 1100W is a premium, fully modular fanless power supply engineered for ultra-quiet, high-performance gaming PCs, creator workstations, and AI-powered systems. Delivering 1100W of continuous power with 80 PLUS Platinum efficiency, this flagship PSU features an innovative patented heat pipe cooling design that eliminates the need for a cooling fan while maintaining exceptional thermal performance. Built to the latest ATX 3.1 standard and equipped with a native PCIe 5.1 (12V-2x6) connector capable of delivering up to 600W to modern graphics cards, the X Silent Edge offers outstanding efficiency, silent operation, industrial-grade Infineon components, digital power monitoring via MasterCTRL, and comprehensive protection circuitry. Designed for users who demand uncompromising reliability with virtually silent operation, it represents one of the most advanced fanless desktop power supplies available.
Key Features
- 1100W continuous power output.
- 80 PLUS Platinum certified with up to 94% efficiency.
- Completely fanless design for absolute silent operation.
- Patented heat pipe and aluminium thermal dissipation system.
- ATX 3.1 compliant with native PCIe 5.1 (12V-2x6) connector.
- Industrial-grade Infineon IC components.
- Fully modular cable management.
- Digital power monitoring compatible with Cooler Master MasterCTRL.
- Comprehensive protection including OPP, OVP, UVP, SCP, OCP, OTP, Surge and Inrush Protection.
- 15-Year Cooler Master Warranty.
Specifications
| Specification | Details |
|---|---|
| Model | Cooler Master X Silent Edge Platinum 1100 |
| SKU | MPS-B001-AZBP-NBEU |
| Power Output | 1100 Watts Continuous |
| Efficiency Certification | 80 PLUS Platinum (Up to 94% Efficiency) |
| ATX Standard | ATX 3.1 |
| Form Factor | ATX |
| Modularity | Fully Modular |
| Cooling | Passive Fanless Heat Pipe Cooling |
| PFC Type | Active PFC |
| Input Voltage | 200–240V AC (230V EU) |
| Motherboard Connector | 1 × 24-pin ATX |
| CPU Connectors | 1 × 4+4-pin EPS, 1 × 8-pin EPS |
| PCIe Connectors | 1 × Native 12V-2x6 (600W), 4 × 6+2-pin PCIe |
| SATA Connectors | 12 |
| Peripheral Connectors | 4 × Molex |
| Additional Connectors | USB 10-pin, PMBus, External Fan Header |
| Protection Features | OPP, OVP, UVP, SCP, OCP, OTP, Surge & Inrush Protection |
| MTBF | >100,000 Hours |
| Dimensions | 180 × 150 × 86 mm |
| Colour | Black |
| Warranty | 15-Year Cooler Master Warranty |
| Product Type | Fanless Fully Modular ATX Power Supply Unit (PSU) |
Disclaimer: Descriptions may be generated and may not reflect the actual product. Please check the manufacturer's website using the product code (SKU) for the full specifications and the most up-to-date product information.
