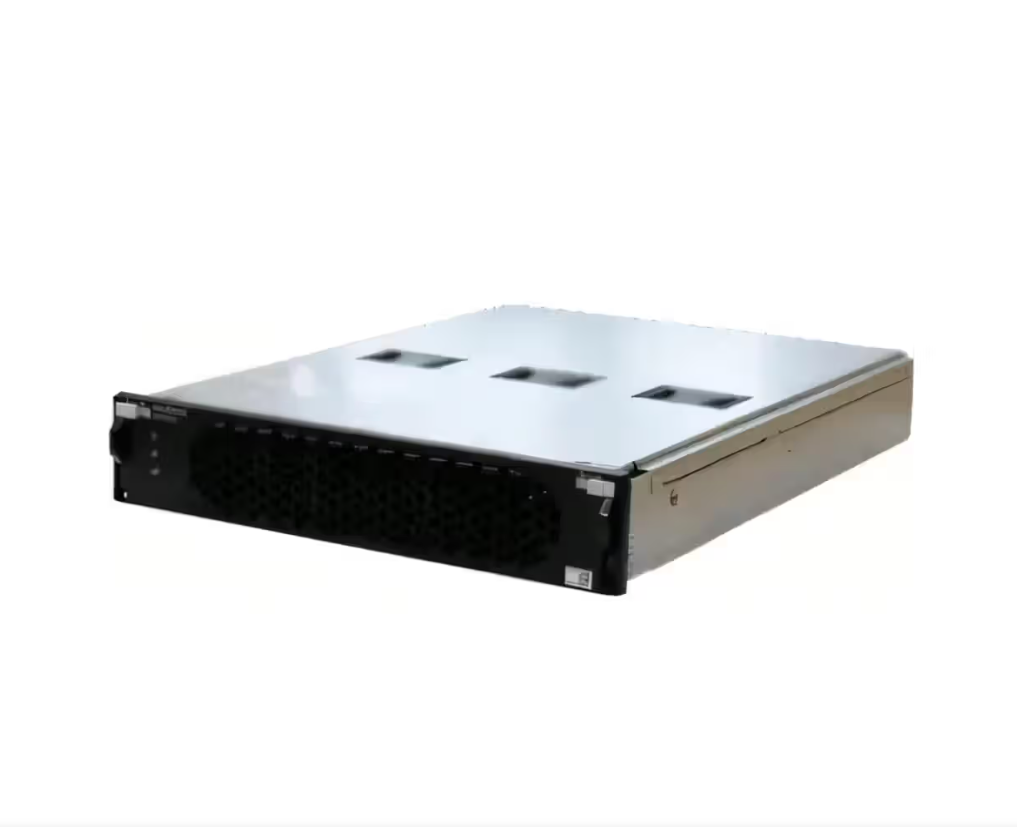

BPM36K1 1U 36kVA Bypass Module
Description
The BPM36K1 is a compact high-efficiency bypass module designed for integration into compatible modular power and UPS systems. Its 1U form factor provides a space-efficient installation while supporting high-capacity power bypass requirements, making it suitable for critical power infrastructure and demanding electrical environments.
Key Features
- 36kVA rated three-phase output capacity
- 24kVA rated capacity for single-phase input connection
- Compact 1U form factor
- High-efficiency design with peak efficiency of ≥99%
- Supports AC/AC bypass power loop switching
- Supports hot swapping
- CAN bus communication
- Full digital control
- Built-in adjustable-speed cooling fan
- Overvoltage and undervoltage protection
- Overfrequency and underfrequency protection
- Overtemperature protection
- Supports parallel capacity expansion
Specifications
| Brand | Huawei |
|---|---|
| Product | 1U 36kVA Bypass Module |
| SKU / Model | BPM36K1 |
| Product Type | High-Efficiency Bypass Module |
| Form Factor | 1U |
| Rated Output Capacity | 36kVA (Three-Phase) |
| Single-Phase Capacity | 24kVA |
| Input Voltage | 200V / 208V / 220V / 230V / 240V AC |
| Input Voltage Range | 176V to 264V AC |
| Input Frequency | 50Hz / 60Hz |
| DC Input Voltage | 42V to 58V DC |
| Three-Phase Input Current | 60A |
| Single-Phase Input Current | 120A |
| Efficiency | Peak ≥99% |
| Cooling | Built-in Fan, Adjustable Speed |
| Dimensions (H x W x D) | 40.8 x 213 x 285.5 mm |
| Weight | Less than 5kg |
| Operating Temperature | -20°C to +75°C |
Disclaimer: Descriptions may be generated and may not reflect the actual product. Please check the manufacturer's website using the product code (SKU) for the full specifications and the most up-to-date product information.
