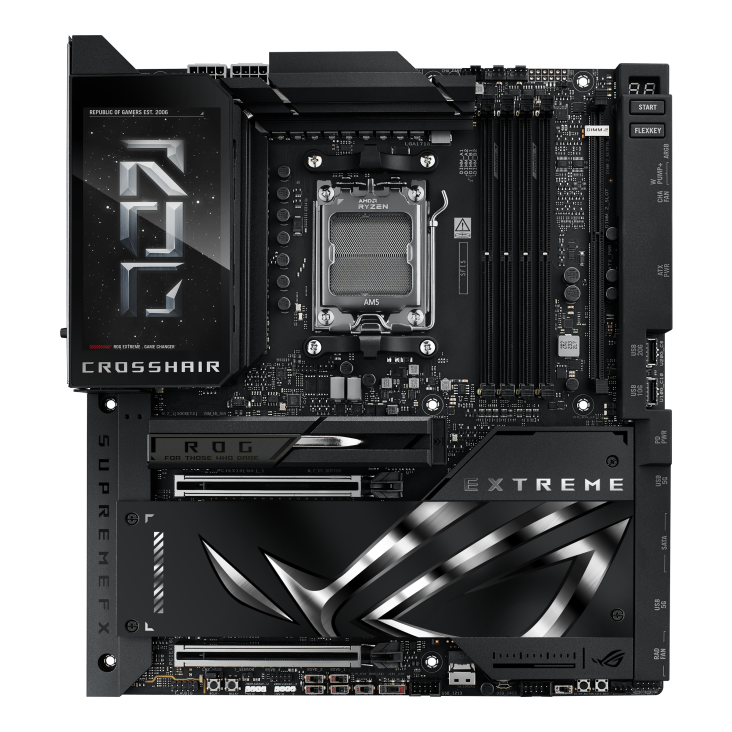

ASUS ROG Crosshair X870E Extreme AM5 ATX Motherboard
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Ask an expert!
ASUS ROG Crosshair X870E Extreme AM5 ATX Motherboard
Built for high-end AMD Ryzen systems, the ASUS ROG Crosshair X870E Extreme combines an enthusiast-grade X870E platform with advanced connectivity, premium cooling and extensive overclocking controls. With support for DDR5 memory, PCIe 5.0 expansion, multiple high-speed M.2 storage devices, Wi-Fi 7, dual high-speed Ethernet and a full-colour 5-inch LCD display, it provides a feature-rich foundation for powerful gaming and workstation builds.
Key Features
- AMD X870E chipset with Socket AM5
- Supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors
- 4 x DDR5 DIMM slots supporting up to 256GB
- DDR5 support with EXPO, AEMP and NitroPath DRAM Technology
- Up to 8200+MT/s overclocked memory support with compatible Ryzen 9000 processors
- 2 x PCIe 5.0 x16 slots with Q-Release Slim
- Up to 5 x M.2 storage slots including PCIe 5.0 x4 support
- 4 x SATA 6Gb/s ports and 1 x SlimSAS connector
- 2 x USB4 40Gbps Type-C ports
- 10 x rear USB 10Gbps ports including Type-A and Type-C connections
- Front USB Type-C 20Gbps connector with Quick Charge 4+ up to 60W
- Marvell AQtion 10Gb Ethernet and Realtek 5Gb Ethernet
- 2x2 Wi-Fi 7 with 2.4GHz, 5GHz and 6GHz support
- Up to 6.5Gbps Wi-Fi 7 transfer rate with 320MHz channel bandwidth
- Bluetooth 5.4 support
- ROG SupremeFX 7.1-channel audio with ALC4082 codec and ESS ES9219 QUAD DAC
- Full-colour 5-inch LCD display for system information and customisation
- 20+2+2 power stages designed for high-performance Ryzen processors
- Extensive enthusiast controls including BIOS FlashBack, Clear CMOS, Safe Boot, Retry and LN2 Mode
- Integrated VRM and M.2 cooling solutions
- ASUS Aura Sync addressable RGB lighting support
Specifications
| Product | ASUS ROG Crosshair X870E Extreme AM5 ATX Motherboard |
| SKU | ASUS ROG CROSSHAIR X870E EXTREME |
| CPU Socket | AMD Socket AM5 |
| Chipset | AMD X870E |
| Processor Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Memory | 4 x DDR5 DIMM, up to 256GB, Dual Channel |
| Memory Technology | AMD EXPO, ASUS AEMP, NitroPath DRAM Technology |
| Expansion Slots | 2 x PCIe 5.0 x16 with Q-Release Slim |
| M.2 Storage | Up to 5 x M.2 slots |
| SATA | 4 x SATA 6Gb/s |
| SlimSAS | 1 x SlimSAS, PCIe 4.0 x4 |
| Ethernet | 1 x Realtek 5Gb Ethernet, 1 x Marvell AQtion 10Gb Ethernet |
| Wireless | 2x2 Wi-Fi 7 (802.11be), 2.4GHz / 5GHz / 6GHz |
| Wi-Fi Speed | Up to 6.5Gbps, 320MHz bandwidth |
| Bluetooth | Bluetooth 5.4 |
| USB4 | 2 x USB4 40Gbps Type-C |
| Rear USB | 10 x USB 10Gbps (8 x Type-A + 2 x Type-C) |
| Front USB-C | USB 20Gbps with Quick Charge 4+ up to 60W |
| Audio | ROG SupremeFX 7.1 HD Audio, ALC4082, ESS ES9219 QUAD DAC |
| Display | Full-colour 5-inch LCD display |
| Power Stages | 20+2+2 power stages |
| RGB | ASUS Aura Sync / Addressable Gen 2 RGB |
| Operating System | Windows 11 |
| Form Factor | E-ATX, 30.5 x 27.7 cm |
