ASUS Motherboard/mATX/LGA1851/4xDDR5/Max.256GB/3xM.2/4xSATA/1xPCIe5*16/1xPCIe4*16/1xHDMI/1xDP/1xType-C/RAID/WiFi7/
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Ask an expert!
Description
ASUS TUF Gaming B860M-PLUS WIFI Micro-ATX Motherboard – Intel® B860, LGA1851, DDR5, PCIe 5.0, WiFi 7, Bluetooth 5.4
Built for gamers, creators, and PC enthusiasts, the ASUS TUF Gaming B860M-PLUS WIFI combines exceptional performance, military-grade durability, and next-generation connectivity in a compact Micro-ATX form factor. Designed to support Intel® Core™ Ultra Processors (Series 2) on the LGA1851 socket, this motherboard features robust power delivery, support for up to 256GB of DDR5 memory, PCIe 5.0 graphics, triple M.2 storage, WiFi 7, 2.5Gb Ethernet, and ASUS-exclusive AI and DIY technologies. Premium cooling, comprehensive connectivity, and TUF-grade reliability make it an ideal foundation for high-performance gaming and productivity systems. :contentReference[oaicite:0]{index=0}
Key Features
- Supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket.
- Intel® B860 chipset in a Micro-ATX form factor.
- 4 DDR5 DIMM slots supporting up to 256GB memory.
- 1 × PCIe 5.0 x16 slot for next-generation graphics cards.
- 3 × M.2 slots including one PCIe 5.0 x4 slot.
- Integrated WiFi 7 and Bluetooth® 5.4.
- Realtek 2.5Gb Ethernet with TUF LANGuard protection.
- USB 20Gbps Type-C with DisplayPort Alt Mode support.
- ASUS Aura Sync RGB and comprehensive cooling controls.
- AI-enhanced networking, BIOS FlashBack™, and easy DIY features.
Specifications
| Specification | Details |
|---|---|
| Brand | ASUS |
| Series | TUF Gaming |
| Model | B860M-PLUS WIFI |
| Form Factor | Micro-ATX |
| CPU Socket | LGA1851 |
| Chipset | Intel® B860 |
| Memory | 4 × DDR5 DIMM, up to 256GB |
| Memory Speed | Up to DDR5-8800+ (OC) |
| Expansion Slots | 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x4 |
| Storage | 3 × M.2 (1 × PCIe 5.0, 2 × PCIe 4.0), 4 × SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Networking | Realtek 2.5Gb Ethernet |
| Wireless | WiFi 7, Bluetooth® 5.4 |
| Video Outputs | 1 × HDMI 2.1, 1 × DisplayPort 1.4, USB-C DisplayPort Alt Mode |

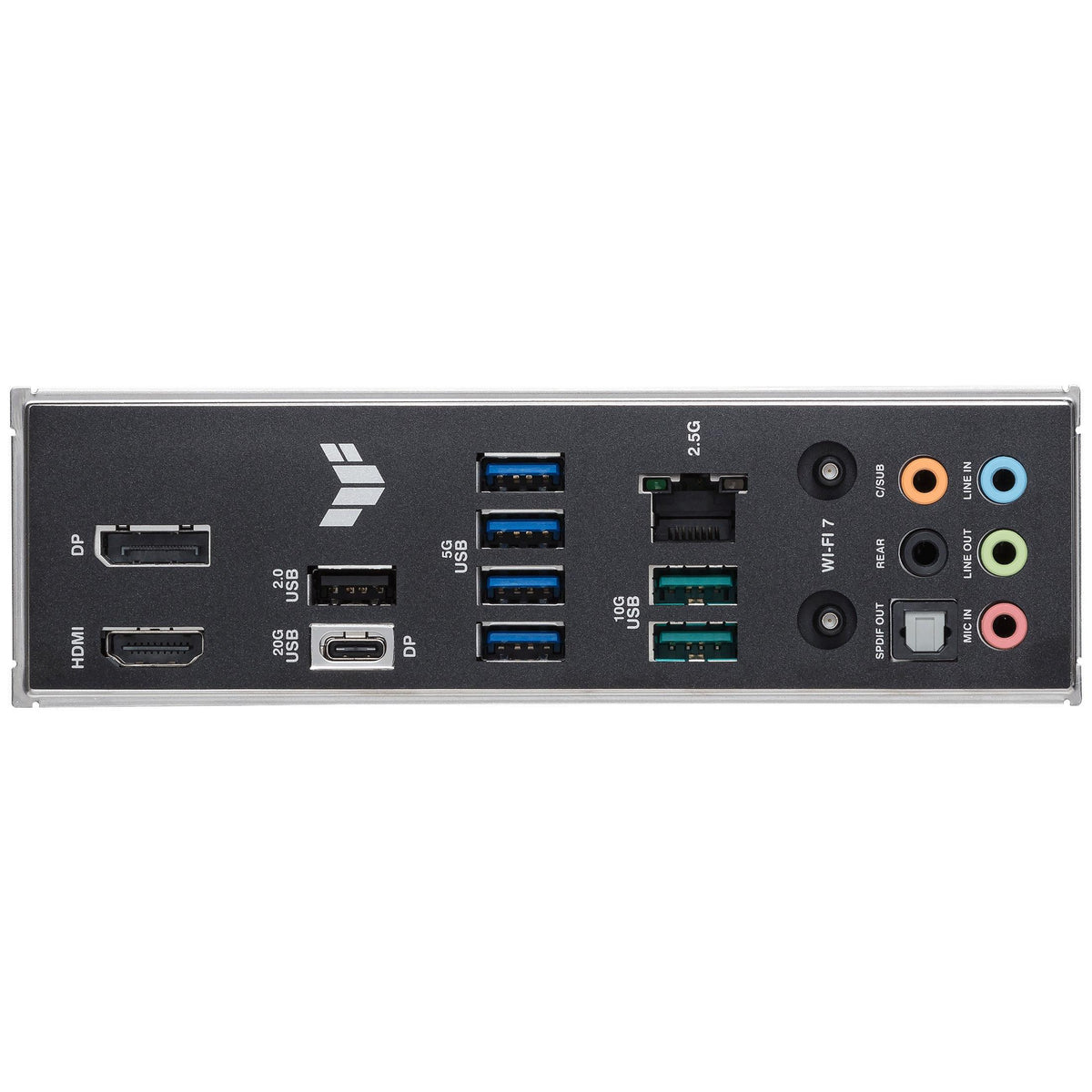

| Rear USB | 1 × USB 20Gbps Type-C, 2 × USB 10Gbps Type-A, 4 × USB 5Gbps Type-A, 1 × USB 2.0 |
| Audio | Realtek 7.1 HD Audio with Optical S/PDIF |
| RGB Support | Aura Sync Addressable Gen 2 RGB |
| Operating System | Windows 11 |
Disclaimer: Descriptions may be generated and may not reflect the actual product. Please check the manufacturer's website using the product code (SKU) for the full specifications and the most up-to-date product information.
