ASUS Motherboard/ATX/LGA1851/4xDIMM/Max.256GB/DDR5/2xPCIe5x16(x16 or x8)/1xPCIe4x16(x4)/4xM.2/8xSATA/1xHDMI/1xType-C/1xVGA/RAID.
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Ask an expert!
Description

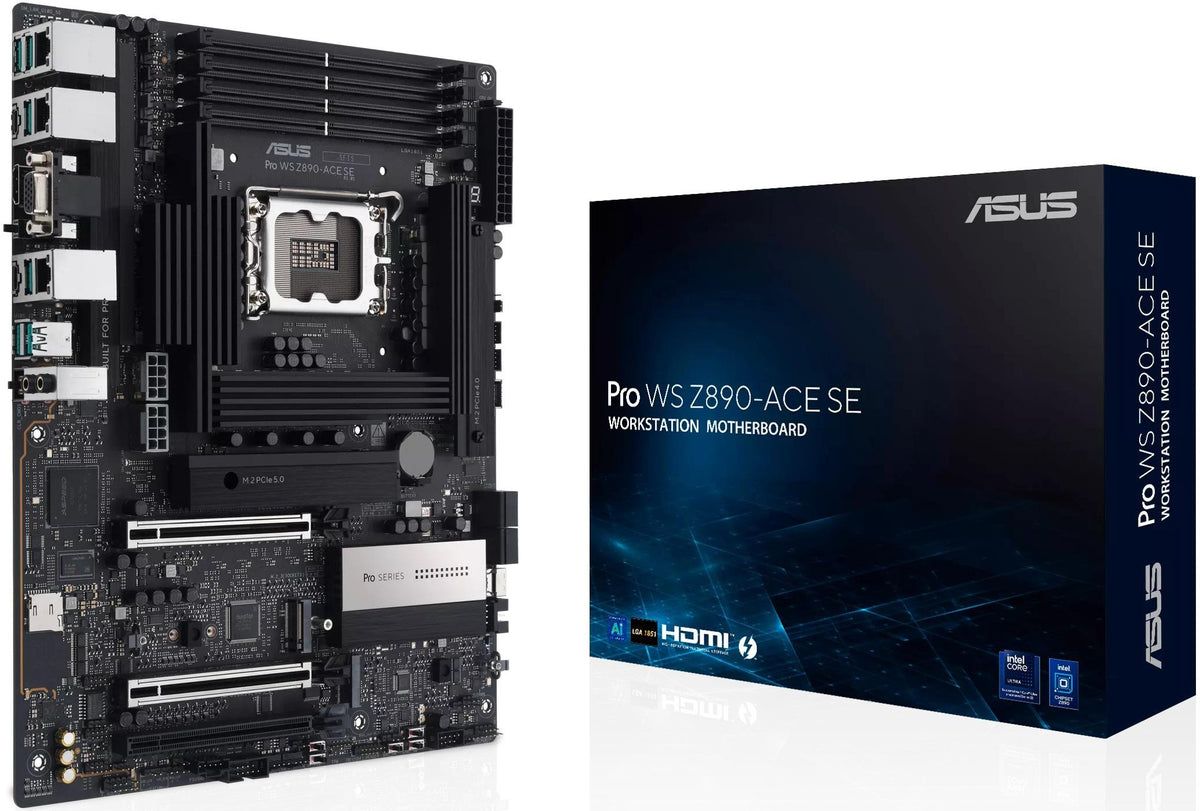

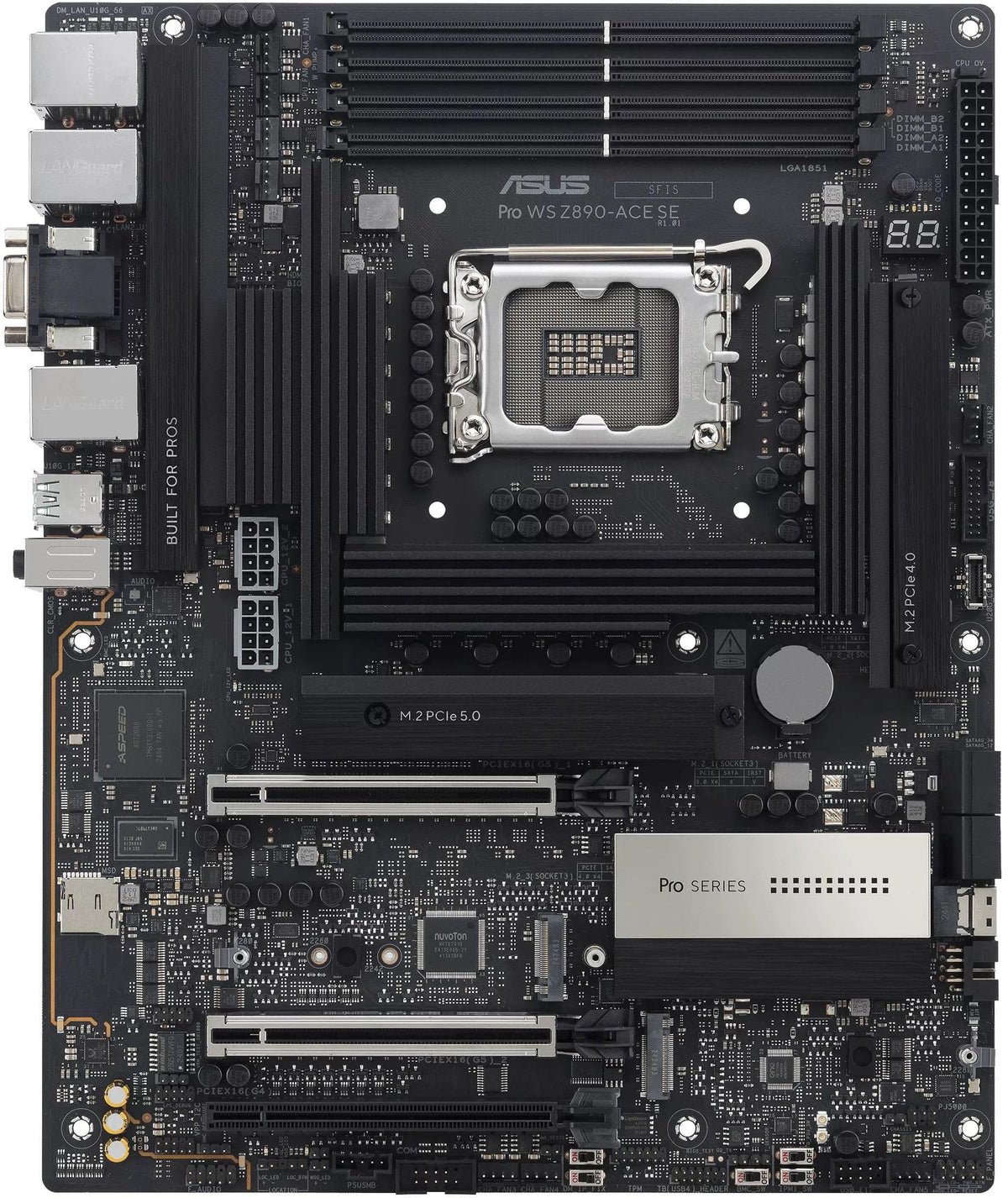

ASUS Pro WS Z890-ACE SE Intel Z890 ATX Workstation Motherboard
The ASUS Pro WS Z890-ACE SE is a professional ATX workstation motherboard built for demanding desktop, professional content creation, AI and workstation applications. Featuring the Intel Z890 chipset and LGA1851 socket, it supports Intel Core Ultra Series 2 desktop processors and provides a high-performance foundation for modern workstation systems.
With four DDR5 memory slots supporting up to 256GB, dual PCIe 5.0 x16 slots, four M.2 slots, high-speed 10Gb and 2.5Gb Ethernet, Thunderbolt 4 and onboard BMC management, the Pro WS Z890-ACE SE delivers extensive connectivity, expansion and storage capabilities for professional workloads.
Key Features
- Intel Z890 Platform: Professional workstation motherboard using the Intel Z890 chipset and LGA1851 socket.
- Intel Core Ultra Support: Designed for Intel Core Ultra processors (Series 2).
- High-Capacity DDR5: Four DIMM slots supporting up to 256GB of DDR5 memory.
- PCIe 5.0 Expansion: Two PCIe 5.0 x16 slots supporting x16 or x8/x8 operation.
- Additional PCIe Expansion: One PCIe 4.0 x16 slot operating at up to x4.
- Four M.2 Slots: One PCIe 5.0 x4 M.2 slot and three PCIe 4.0 x4 M.2 slots for high-speed NVMe storage.
- Extensive Storage: Four SATA 6Gb/s ports plus a SlimSAS connector capable of supporting up to four additional SATA devices with the appropriate adapter.
- 10Gb Ethernet: Marvell AQtion 10Gb Ethernet for high-speed professional networking.
- 2.5Gb Ethernet: Additional Intel 2.5Gb Ethernet connectivity.
- Thunderbolt 4: Rear Thunderbolt 4 USB Type-C connectivity with high-speed data and display support.
- Professional BMC: Integrated ASPEED AST2600 BMC for remote management and workstation administration.
- Display Outputs: HDMI output plus a dedicated BMC VGA output.
- Robust Power Design: 16+1+2+2 teamed power stages rated at 90A, with ProCool II power connectors.
- Workstation Reliability: Designed for demanding professional workloads and 24/7 reliability.
- ASUS Q-Design: Includes features such as M.2 Q-Latch, Q-Release Slim, Q-Connector, Q-DIMM and Q-LED for easier system building and troubleshooting.
Specifications
| Specification | Details |
|---|---|
| Brand | ASUS |
| Model | Pro WS Z890-ACE SE |
| Chipset | Intel Z890 |
| CPU Socket | Intel LGA1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to 9066+ MT/s (OC), depending on CPU and memory configuration |
| Memory Architecture | Dual Channel |
| Memory Features | Intel XMP, ASUS AEMP III, DIMM Fit, DIMM Flex |
| Primary Expansion | 2 x PCIe 5.0 x16, supporting x16 or x8/x8 modes |
| Additional Expansion | 1 x PCIe 4.0 x16, supports up to x4 |
| M.2 Slots | 4 x M.2 Key M |
| M.2 Configuration | 1 x PCIe 5.0 x4 + 3 x PCIe 4.0 x4 |
| SATA | 4 x SATA 6Gb/s + 1 x SlimSAS supporting up to 4 additional SATA devices with adapter |
| RAID | PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10; CPU-connected M.2 RAID 0/1/5 |
| Ethernet | 1 x Marvell AQtion 10Gb + 1 x Intel 2.5Gb + 1 x Realtek 1Gb dedicated to BMC |
| Thunderbolt | 1 x Thunderbolt 4 USB Type-C |

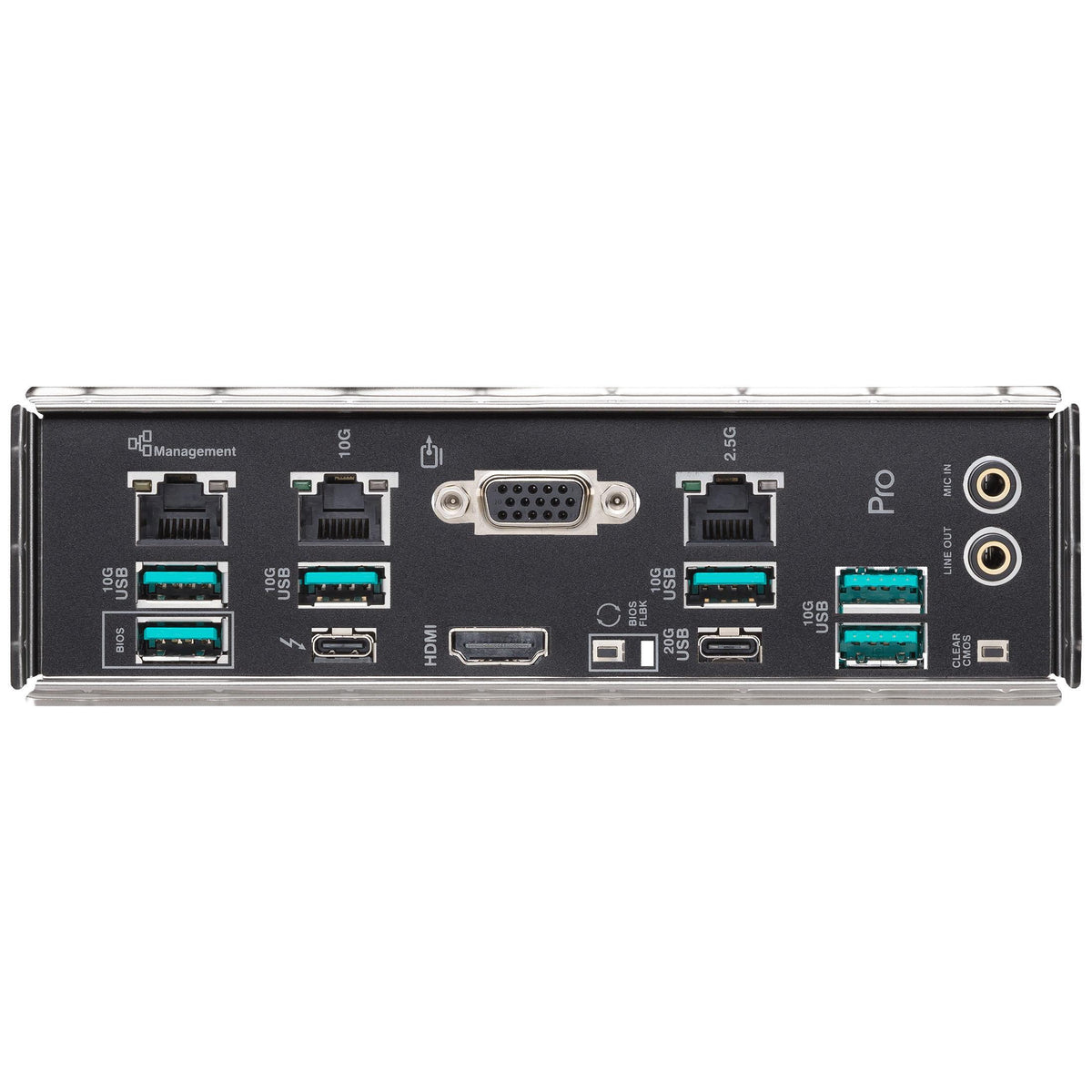

| Rear USB | 1 x USB-C 20Gbps, 6 x USB-A 10Gbps, 1 x Thunderbolt 4 USB-C |
| HDMI | 1 x HDMI 2.1, up to 4K @ 60Hz |
| VGA | 1 x BMC VGA output via ASPEED AST2600 |
| Audio | Realtek ALC1220P 7.1-channel High Definition Audio |
| BMC | ASPEED AST2600 |
| Form Factor | ATX |
| Dimensions | 30.5 x 24.4 cm |
Descriptions may be generated and may not reflect the actual product. Please check the manufacturer's website using the product code (SKU) for the full specifications and the most up-to-date product information.
